Description

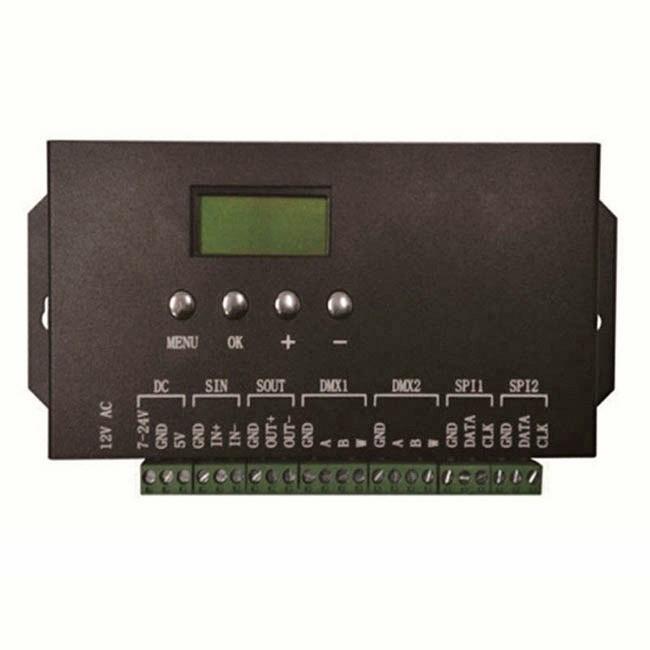

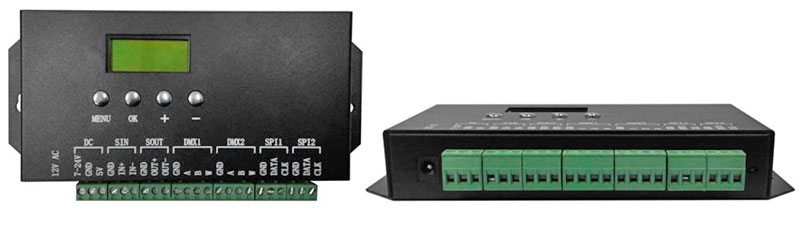

MR502 LED Pixel Conrtoller,DMX /SPI Decoder
Parameters
|
Model Name |
LCL-MR-502 Offline RGB LED Controller |
|
|
Control Color |
RGB/RGBW/Full color display |
|
| Max Load Pixels |
One universe can support 170pixels for DMX lights or 1024pixels for SPI lights |
|
| Ouput Interface |
Synchronous serial shift data signal x2 /Compatible with DMX512 signal x2 |
|
|
Grayscale |
256-65536 Level |
|
| Input Voltage | DC7.5-24V | |
|
Power Consumption |
2W |
|
| SD Card Capacity |
4GB |
|
|

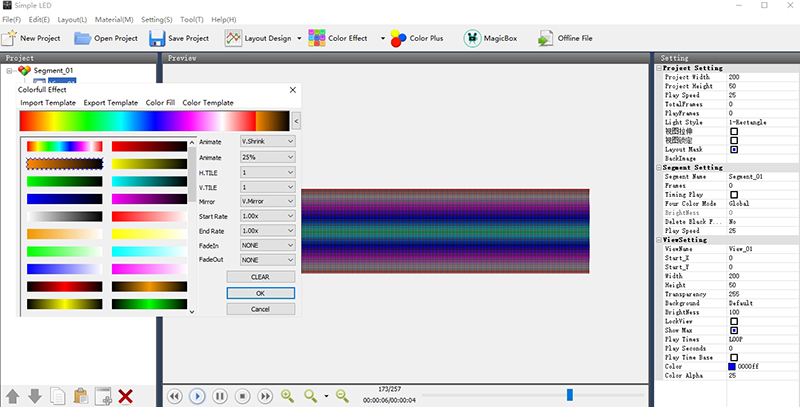

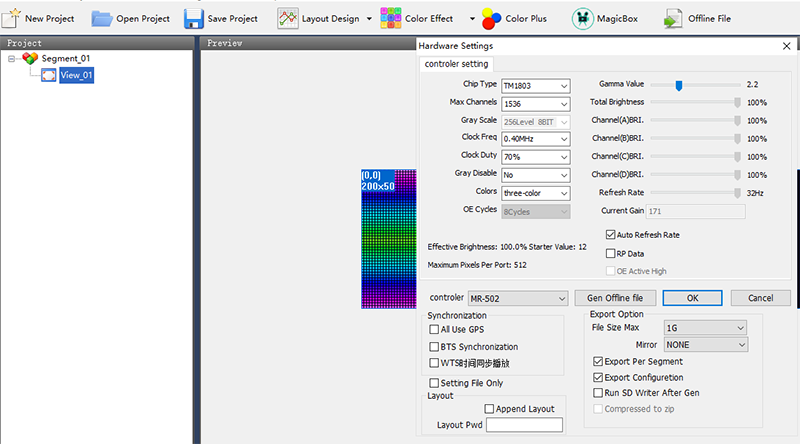

Support software |
Mr Player Software |
|
| Working temperature |
-20℃-+50℃ |
|
|
Working Environment |
IP20, Indoor use only |
|
|

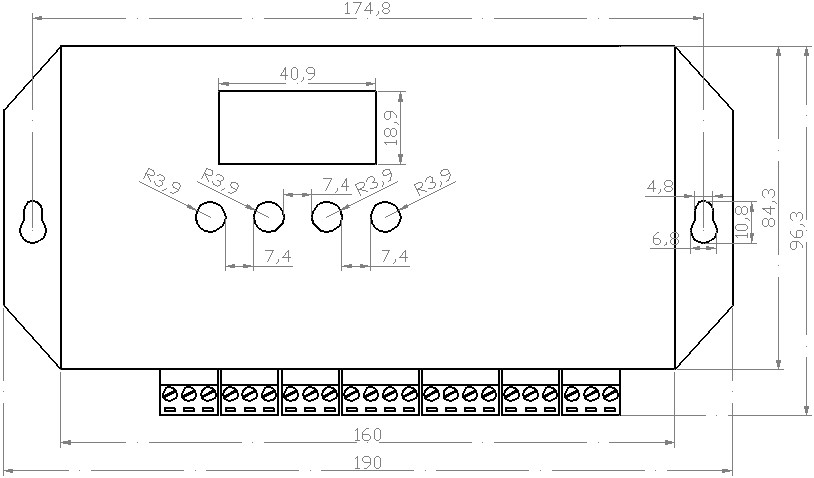

Dimension |
190x96.3x32.5 mm |
|
|
Net Weight |
0.6KG |
|

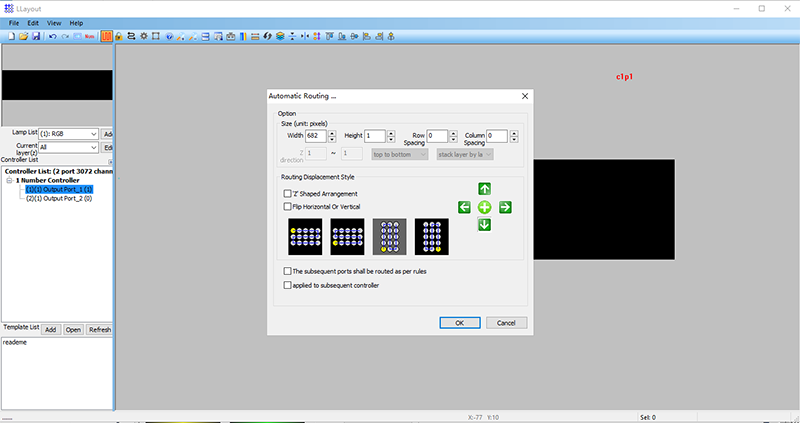

Pixel Mapping
Support USITT DMX512/1990 Protocol: DMX512、DMX512AP、UCS512、MY7221、WS2821
Support SPI Protocol: MBI6020, MBI6021, MBI6024, MBI6027, MBI6120, MBI5024, MBI5042; TM1803, TM1804, TM1809, TM1829, TM1913, TM1914, TM1925, TM1926; UCS1903, UCS1909, UCS21912, UCS2903, UCS2909, UCS2912, UCS3903, UCS3912, UCS8903, UCS8904, UCS9812; TLS3001; SM16711, SM16716, SM16703P; LPD1882, LPD1886, LPD6803, LPD8806; WS2801, WS281; MY9221, MY9231; CX808;; DM412 P9813; TLC5971, TLC5973; BS0815, BS0825, BS0901; GW6201, GW6205, GW6230, GW6236
