Description

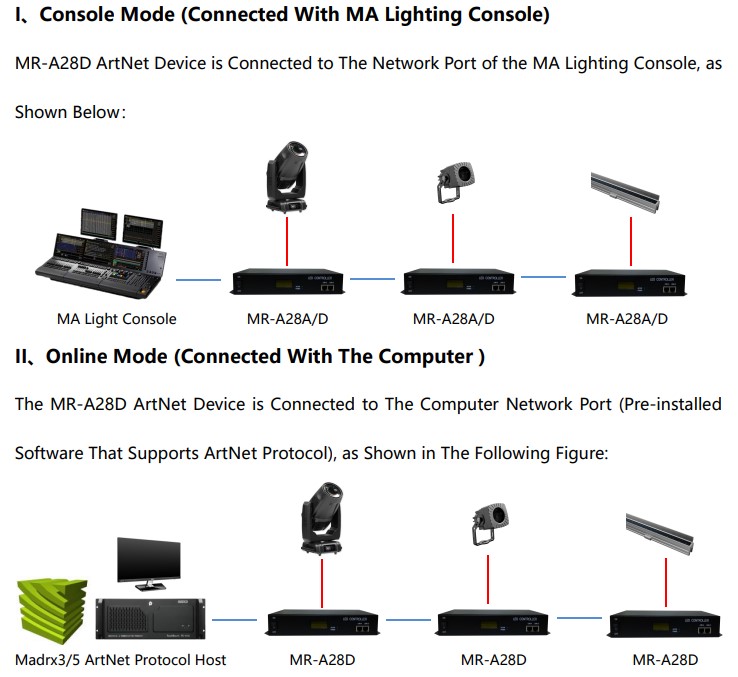

The MR-A28D control system uses the ArtNet protocol over an Ethernet network to send DMX512 data lighting fixtures. It has a high-performance processor, 8 DMX512 ports, and is compatible with a variety of lighting control software. It is widely used in LED matrix displays and stage lighting systems.compatible with lighting control software that complies with the ArtNet protocol, such as Madrix3, Madrix5, Programmer, Pharos, Sunlite, Luminair, Arocos, MA control panels, Sander etc
Features:
1. ArtNet protocol based on TCP/IP Ethernet protocol
- 2. standard USITT DMX512/1990 General and Extended protocols
- 3. cascade transmission of 254 devices
- 4.64 universes and a single port expansion of up to 8 times, totaling 4096 channels
- User can set up two different IP addresses
- 5.Supports 32-65536 grayscale 16Bit and 262144 grayscale to restore image details
- 6.Independent brightness control of 3 primary colors for easy white balance adjustment
- 7.Supports R, RB, RGB, RGBW, RGBWY, and multi-color mixing control
- 8.Accurate gamma correction algorithm in line with human visual sense
- 9.Supports 120Hz frame rate for high-definition display and 3D requirements

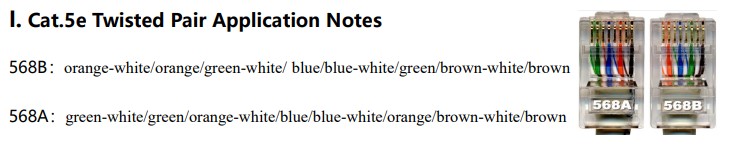

- Uses Ethernet interface and TCP/IP protocol for a distance of up to 100 meters

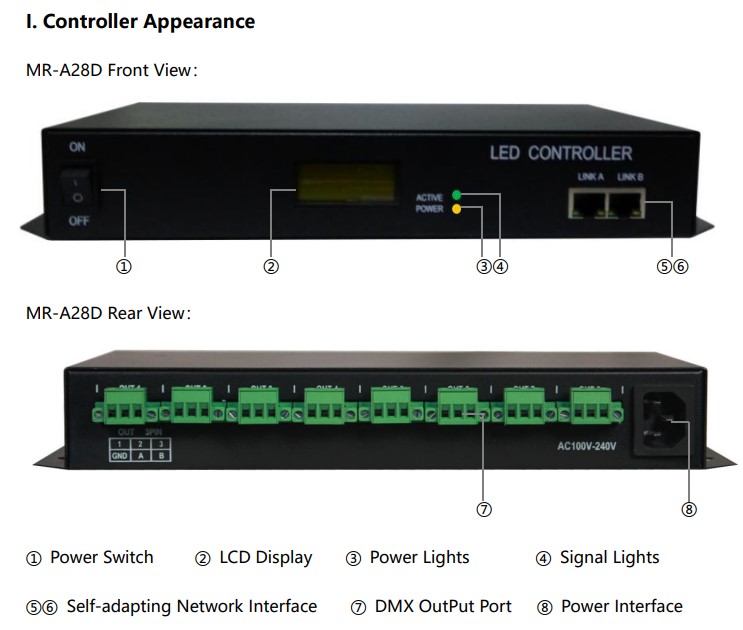

- 10.LCD display module shows controller parameters and status in real. Supports device ID number data flow sequence and fixed arrangement
- 11.Supports IP grouping function and switch parallel scheme

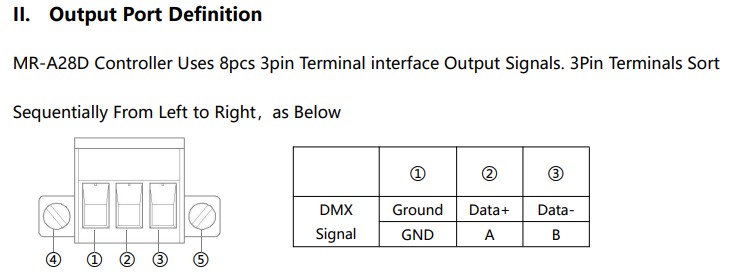

- 12.8-port output with unlimited single-port load points and self-test
- 13.Dual backup in case of controller failure or disconnected display
- 14.Anti-interference and leakage design ,Overcurrent and overvoltage protection
- 15.Equipment network port, port out put, and surge protection: 1.5KV
- 16.Supports severe working environments ranging from -40℃ to 80℃
- 17.Network adaptive or mandatory 100M can be set to support more loading
- 18.Different network segments can be set up to avoid mutual interference
-
